Heavy Lifters

Electro-Permanent Magnetic Lifters

SEP Lifters

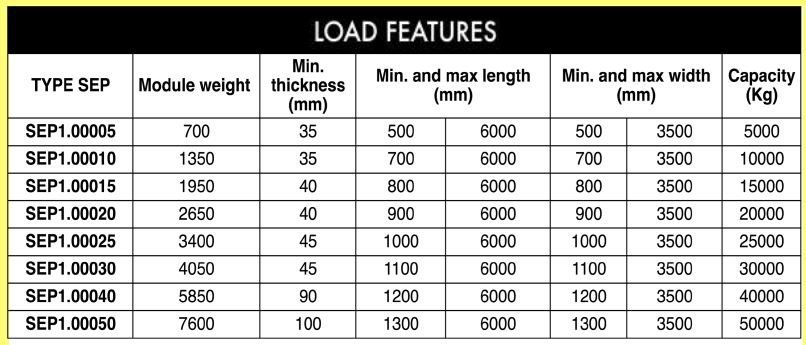

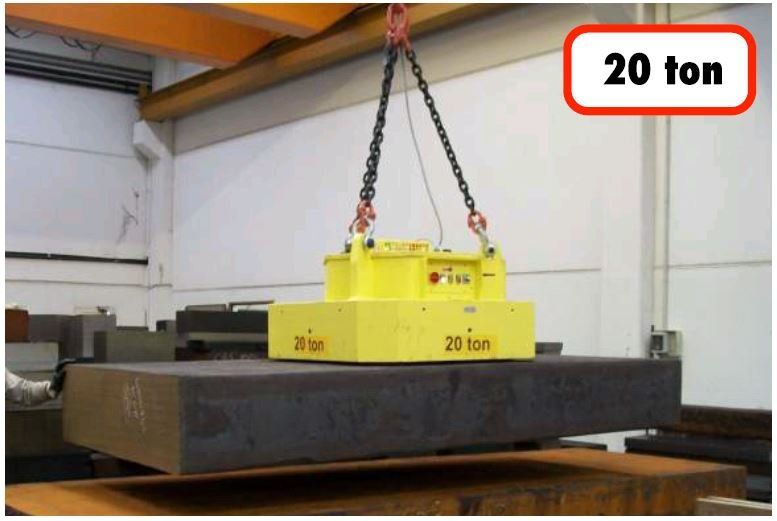

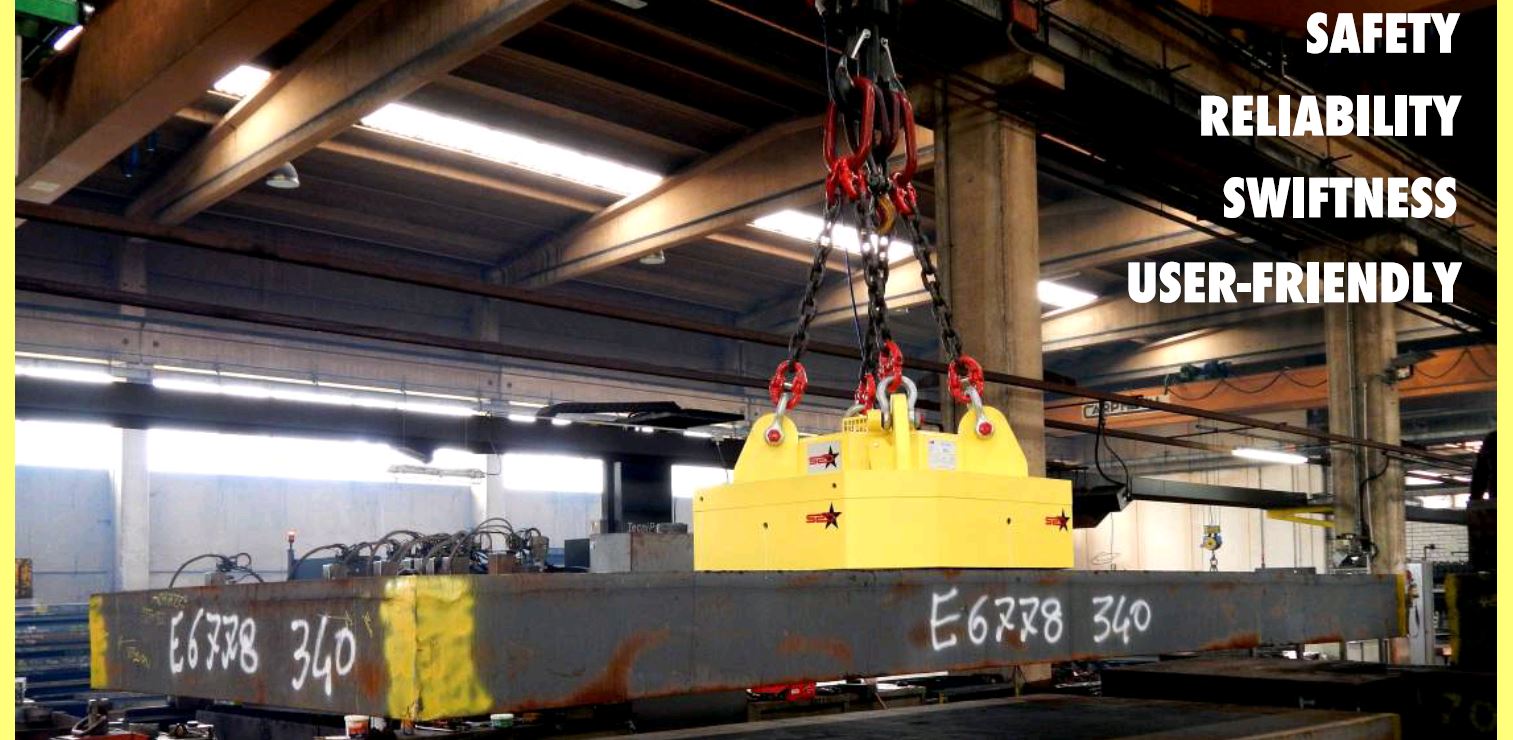

SEP Single Module Magnetic Lifters

For Handling Single Thick Slabs and Forged Blocks and Plates
SEP permanent electro-magnetic modules are designed for lifting loads with big operational air gaps.
  • Electro-permanent Lifters from 5t to 50t
  • 4-pole circuit for high force concentration.
  • High magnet strength.Electro-permanent Lifters from 5t to 50t
FULL POWER -  FAIL SAFE
Even in the event of total power failure the SEP range remain magnetised at full power indefinitely.
No battery back-up required

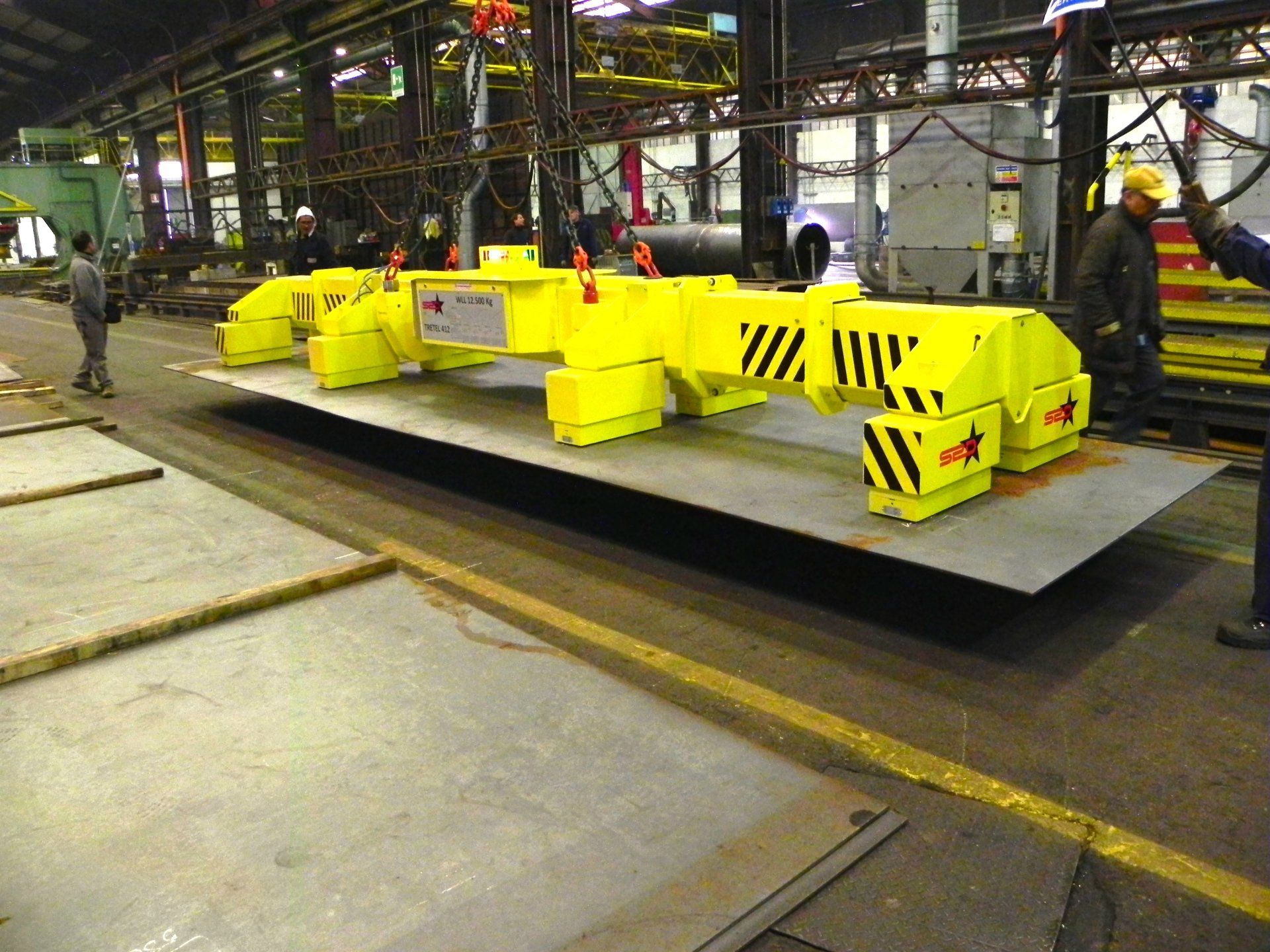

TRETEL Telescopic Beam Magnetic Lifters
For single plate handling up to 18m

Version with 4 and 6 cross beams with 2 modules each.


Plates, especially large ones, are particularly difficult loads to handle. When attempting to move with traditional methods (hooks, chains, cables) the plates have a tendency to flex and deform, making the grip on the load unstable and dangerous.

The TM series beams pick up the load uniformly from above, without deformations or damage to the load. Specific selection of the thickness is possible even via radio control to pick up a single plate.


The ability to lengthen or shorten the centre distance between cross beams and select the modules to magnetise, make the TM beams extremely flexible to use. The telescopic movement is actuated by a dedicated hydraulic pump; the movement of the telescopic arms allows the handling of a complete range of big plates.

Special Heavy Magnet solutions

Whatever problematic handling requirements you have, we can provide a full feasibility study to provide a SAFER, FASTER, MORE EFFICENT way to move large steel materials or fabrications within your factory.



 Special solutions like this can be produced to solve your difficult lifting applications. From design through manufacture, building and installation we will be with you all the way. Each installation is thoroughly tested to comply with all regulating standards and expert training and instruction given.
